Sample Holder for Fine Powders, Pastes, Gels, Foams and Creams

Up to 1000°C

  • Updated

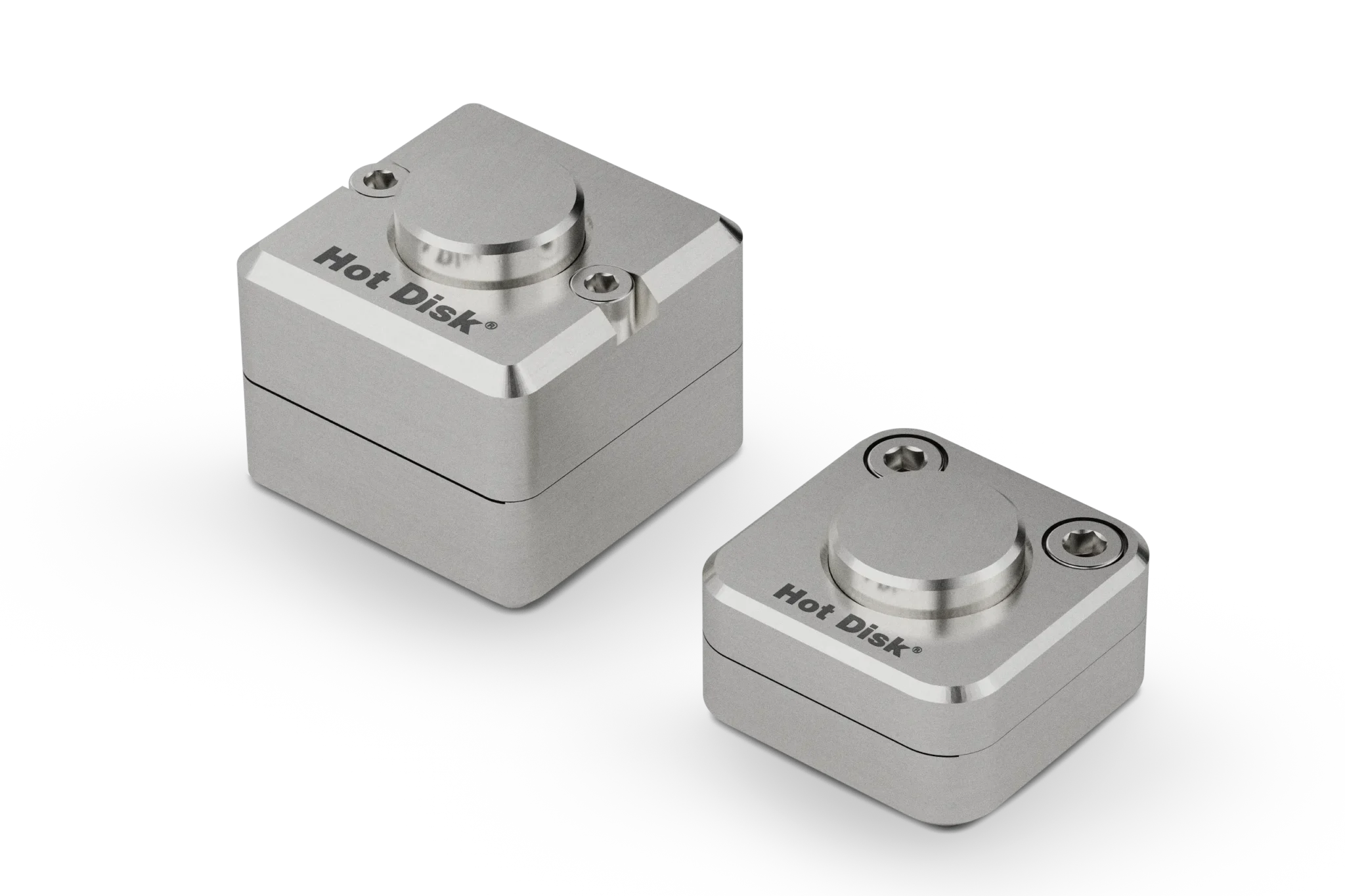

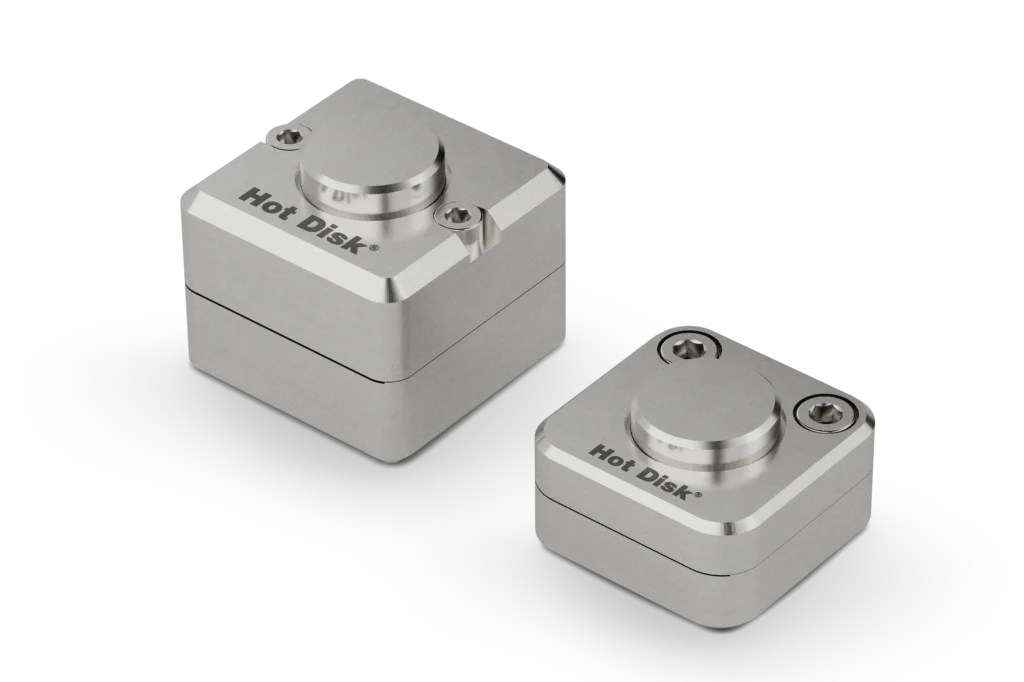

This sample holder is intended for testing fine powders, pastes, gels, foams, and creams. It is mainly geared toward operation with our Kapton-insulated Hot Disk® sensor models 5465 and 5501 for ambient temperatures below 400°C, but it can also be used with our corresponding Teflon-insulated (for reactive samples) Hot Disk® sensors for ambient temperatures below 250°C. Likewise, it can be used with our Mica-insulated Hot Disk® sensor models 5465 and 5082 for ambient temperatures above 400°C.

The sample holder contains a small cylindrically-shaped cell with a top piston that can move freely but tightly inside the cell. To load the sample with the relevant sensor, the cell is divided by releasing two bolt screws on the top side. The bottom is thereafter filled with half of the sample amount, while the sensor is then placed horizontally on top (where there is a dedicated recess for the sensor), making sure the double-spiral of the sensor remains centered in the cell. Next, the top is mounted and assembled by tightening the two bolt screws. Finally, the remaining sample amount is filled into the top portion, and the top piston is fitted accordingly. The piston is designed to extend above the top surface when the sample with sensor is fully loaded and assembled. The purpose is to have easy access to pressurize the sample once loaded, via mechanical force on the piston.

The sample holder comes in two outer-dimension-sizes tailored to fit into our two respective tube furnace TCUs. The diameter of the cell is the same in both versions, 25 mm, but the cell height is 14 mm in the smaller version (option 1) and 19 mm in the larger version (option 2).

The sample holder is made of stainless steel, and can be used up to 1000°C.

Sample Holder for Fine Powders, Pastes, Gels, Foams and Creams
Temperature range Up to 1000°C
Typical sensor models
Temperatures <250°C Kapton-insulated or Teflon-insulated (for reactive samples) Hot Disk® sensor models 5465 and 5501
Temperatures 250°C to 400°C Kapton-insulated Hot Disk® sensor models 5465 and 5501
Temperatures 400°C to 1000°C Mica-insulated Hot Disk® sensor model 5465 and 5082
Sample cell
Volume 6.9 cm3 (option 1) and 9.3 cm3 (option 2)
Diameter 25 mm
Height 14 mm (option 1) and 19 mm (option 2)
Material Stainless steel
Dimensions
(height x width x diameter)		 22 mm x 45 mm x 45 mm (option 1) and
39 mm x 50 mm x 50 mm (option 2)
Weight 0.3 kg (option 1) and 0.7 kg (option 2)
