Sample Holder for Solids – Background insulation for Single-sided Testing

Up to 50°C

  • Updated

This background insulation for single-sided testing is designed for testing one sample piece (instead of standard two sample pieces), using the sample holder for solids. It ensures that the heat generated by the Hot Disk® or Hot Strip® sensor during a transient recording conducts into the sample. The background insulation is to be firmly pressed onto the top side of the sample with the Hot Disk® or Hot Strip® sensor placed in between, using the sample clamping mechanism of the sample holder.

The background insulation consists of a 3D-printed PLA (Polyactic Acid) body with an integrated stainless steel disc on the top side, and a thermal insulating block on the bottom side. The stainless steel disc is used to define the pressure point for the sample holder and to distribute the applied force. The thermal insulating block is clamp-fitted into the body, thereby being easily replaceable. It is made of a 20-mm-thick sheet of EPS (expanded polystyrene), but can on request be changed to XPS (extruded polystyrene). The use of XPS can be of advantage when testing a high thermal conducting sample or a sample with a rough surface, as it will require a high pressure between the background insulation and the sample. XPS has a higher compressive strength compared to EPS, but the thermal conductivity is somewhat higher.

The background insulation is designed for use up to 50°C, and is available in two sizes to suit the standard as well as the large version of the sample holder for solids.

  • Option 1: For standard version of sample holder for solids
  • Option 2: For large version of sample holder for solids
Sample Holder for Solids – Background insulation for single-sided testing
Temperature range Up to 50°C
Material
Body PLA, stainless steel
Insulation EPS (or XPS on request)
Dimensions (height x diameter) 32 mm x 64 mm (option 1)
32 mm x 95 mm (option 2)
Weight 43 g (option 1)
76 g (option 2)

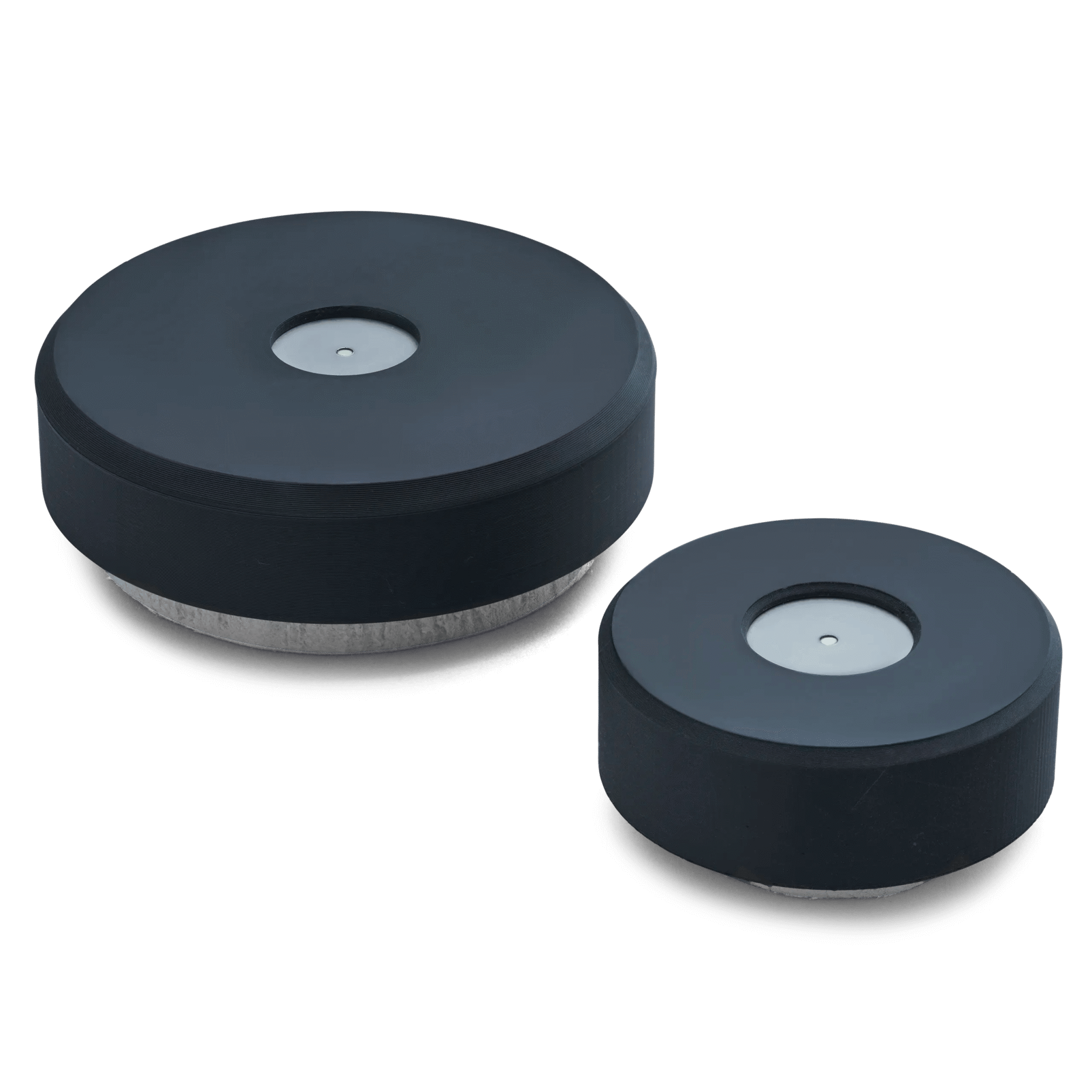

Two sample holders for solids with background insulation

Other Accessories

  • Updated
Sensor Cable – Room Temperature
-20°C to 50°C

This grey-colored polymer-clad sensor cable is intended to operate in room temperature with our Kapton- or Teflon-insulated Hot Disk®, Hot Strip®, or Hot Cell® sensors. It comes with an 8-pin Lemo connector in one end for connection to our Hot Disk® instruments (or our sensor switch units), and with four bare wires at the other end for permanent connection to the sensor.

Learn more >
  • Updated
Sensor Cable – Low to Medium Temperatures
-60°C to 180°C

This red-colored silicone-clad sensor cable is intended for measurements at low to medium temperatures, down to -60°C and up to up to 180°C, with our Kapton- or Teflon-insulated Hot Disk®, Hot Strip®, or Hot Cell® sensors. The cable comes with a 4-pin Lemo connector in one end and with four bare wires in the other end for permanent connection to the sensor.

Learn more >
Sensor Cable – Cryogenic Temperatures
Down to 20 K (-253°C)

This red-and-black colored silicone-clad thin-diameter sensor cable is intended for measurements at cryogenic temperatures, down to 20 K, using a cryostat and our Kapton- or Teflon-insulated Hot Disk® or Hot Strip® sensors.

Learn more >
Sensor Cable Extension
-20°C to 50°C

This grey-colored polymer-clad sensor cable extension is for accommodating measurement scenarios requiring longer distances between the testing point and the Hot Disk® instrument. It comes with an 8-pin Lemo connector in both ends for a smooth extension of our room temperature sensor cable or adaptor cable.

Learn more >
  • New
PT100 Cable Extension
-20°C to 50°C

This grey-colored polymer-clad PT100 cable extension is for accommodating measurement scenarios requiring longer distances between the testing point and the Hot Disk® instrument. It comes with an 4-pin Lemo connector in both ends for a smooth extension of the cable of our PT100 temperature sensors.

Learn more >
Sensor Cable Adaptor
-20°C to 50°C

This grey-colored polymer-clad sensor cable adaptor is intended for our low- to medium-temperature sensor cables, converting their 4-pin Lemo connector into the 8-pin Lemo connector needed for connection to our instruments (and switch units).

Learn more >
Hot Disk Sensor Interface up to 300°C
  • Updated
Sensor Interface – High Temperatures
Up to 300°C

This sensor interface is intended for temporarily connecting bare Kapton- or Teflon-insulated Hot Disk® or Hot Strip® sensors to sensor wires, and to accommodate measurements at high temperatures, up to 300°C.

Learn more >
Hot Disk Sensor interface up to 800°C
  • Updated
Sensor Interface – High Temperatures
Up to 800°C

This sensor interface is intended for temporarily connecting bare Mica-insulated Hot Disk® sensors to sensor wires, and to accommodate measurements at very high temperatures, up to 800°C.

Learn more >
Two Hot Disk sample holder for solids
  • Updated
Sample Holder for Solids
Room Temperature (or up to 600°C)

This convenient benchtop sample holder is primarily intended for bulk sample testing at room temperature. It can, however, be modified to accommodate ambient temperatures up to 600°C. This allows for the usage in environmental chambers or larger furnaces.

Learn more >
Two protective hoods for sample holder for bulks
  • Updated
Sample Holder for Solids – Protective Hood
Room Temperature (or up to 600°C)

The sample holder for solids can be complemented with a protective hood. We strongly recommend the use of this hood to ensure that the full potential of a Hot Disk® instrument in terms of measurement accuracy and precision is utilized.

Learn more >
Sample Holder for Slabs, Wafers, Sheets, Textiles and Films
Up to 1000°C

This sample holder is to be used when testing highly thermal conductive slab or sheet samples (with our Slab Measurement Module) that are relatively stiff, such as metal slabs, graphite sheets or laminates, and semiconductor wafers. At ambient temperatures below 400°C, this sample holder is typically applied with our Kapton-insulated Hot Disk® sensor models 5501 and 8563. At higher temperatures, it is typically used with our Mica-insulated Hot Disk® sensor model 5082.

Learn more >
Hot Disk Sample holder for powders, pastes, gels, foams, and creams.
  • Updated
Sample Holder for Fine Powders, Pastes, Gels, Foams and Creams
Up to 1000°C

This sample holder is intended for testing fine powders, pastes, gels, foams, and creams. It is mainly geared toward operation with our Kapton-insulated Hot Disk® sensor models 5465 and 5501 for ambient temperatures below 400°C, but it can also be used with our corresponding Teflon-insulated (for reactive samples) Hot Disk® sensors for ambient temperatures below 250°C. Likewise, it can be used with our Mica-insulated Hot Disk® sensor models 5465 and 5082 for ambient temperatures above 400°C.

Learn more >
Hot Disk Sample Holder for Powders
Sample Holder for Coarse Powders, Grains, Beads, Granules and Pellets
Up to 400°C

This sample holder is intended for testing granular materials such as coarse powders, grains, granules, beads, and small pellets. It is mainly intended to operate with our Kapton-insulated Hot Disk® sensor model 4922, which has a double-spiral diameter of 29.2 mm. The grain/particle size of the granular sample must be significantly smaller (>10 times), than the double-spiral diameter (i.e. <3 mm for Hot Disk® sensor model 4922).

Learn more >
Hot Disk Sample Holder for Samples to be Frozen
Sample Holder for Foods, Pastes, Gels, Foams and Creams
-60°C to 180°C

This sample holder is primarily intended for testing samples to be frozen, such as foods. It can, however, equally well be used for the testing of high viscosity liquids, pastes, gels, foams, and creams. For frozen samples, we recommend the use of our Kapton-insulated Hot Disk® sensor model 8563; this has a double-spiral diameter of 19.8 mm. For high-viscosity liquids, pastes, gels, foams, and creams, we advise Kapton-insulated or Teflon-insulated (for reactive samples) Hot Disk® sensors with somewhat smaller double-spiral diameters.

Learn more >
Hot Disk Sample Holder for Liquids
Sample Holder for Liquids
-60°C to 180°C

This sample holder is intended for testing liquids, including ones with very low viscosity (such as Toluene). Testing liquids is somewhat challenging, as the heating from the sensor can introduce natural convection in the relevant liquid, especially regarding low-viscosity liquids, which disturbs the measurement results. To minimize this disturbance the sample volume should be small, and hence the sensors will be of modest size. We therefore recommend the use of our Kapton-insulated Hot Disk® sensor models 5465 and 7577, having double-spiral diameters of 6.4 mm and 4.0 mm, respectively, for testing liquids. For reactive samples, our Teflon-insulated Hot Disk sensor models 5465 and 7577 (with some customization) can also be used.

Learn more >
A sample holder for melts
  • New
Sample Holder for Melts
Up to 180°C

This sample holder is intended for testing melt samples, like plastics, wax, salts, metall alloys etcetera. The sample is in solid phase, in the form of powder, grains, or pellets, when loaded, and in liquid phase at the elevated ambient temperature where the measurement is performed.

Learn more >
Two Sample Holders for Melts up to 1000 °C
  • New
Sample Holder for Melts
Up to 1000°C

This sample holder is constructed for testing melt samples, like polymers, salts, alloys, and metals. It is mainly intended to be used with our tube furnace TCUs, where it can be used for testing melts up to 1000°C. It can of course be used with other TCUs, like our convection ovens and our muffle furnaces. The sample is in solid phase, in the form of powder, grains, or granules, when loaded, and in liquid phase at the elevated ambient temperature where the measurement is performed.

Learn more >
Weights for Sample Compression
Up to 800°C

These weights are used for pressuring soft sample materials during testing. They are intended primarily for testing thin film samples (with the Thin Film Measurement Module), where they work to reduce the thermal contact resistance between the Hot Disk® sensor and the two thin film sample pieces. The weights can also be used to study the properties of soft bulk materials as a function of pressure. The weights are then stacked to vary the pressure.

Learn more >
Manual Test Stand for Sample Compression
Room Temperature

This bench-top, manually operated, force-measurement test stand is used for pressuring soft sample materials during testing. It furnishes both precise pressure and displacement monitoring. The manual test stand can conveniently be used to study the properties of soft bulk materials as a function of pressure and/or deformation.

Learn more >
Verification Sample
Single Material

This is a verification sample of optional material: stainless steel (AISI 316/316L), fused quartz (amorphous silica, SiO2), or PMMA (polymethyl methacrylate). Two identical sample pieces are supplied, each having a flat cylindrical shape of diameter 60 mm, and thickness of 20 mm. The two sample pieces come in our smaller-sized signature wooden box with aluminum lid, together with a leaflet and a USB flash drive.

Learn more >
Verification Samples
Kit of three materials

This kit contains three different verification samples: stainless steel (AISI 316/316L), fused quartz (amorphous silica, SiO2), and PMMA (polymethyl methacrylate). Two identical sample pieces of each material are supplied, each having a flat cylindrical shape of diameter 60 mm, and thickness 20 mm. The six sample pieces come in our larger-sized signature wooden box with aluminum lid, together with a leaflet and a USB flash drive.

Learn more >
