Hot Cell® Sensors

For Liquids, Gels, and Pastes

This Hot Cell® sensor has a small cell volume and is intended for testing liquids, gels, and pastes. The cell is made of 18K gold and has the shape of a flat cylinder, with a width of 19 mm and height of 4.5 mm. The gold enables easy cleaning and handling of acidic or corrosive specimens.

This Hot Cell® sensor comes with a high temperature foam insulation and two cable options – a standard grey-colored polymer-clad cable for use between -20°C to 50°C, and a red-colored silicone-clad cable for use between -60°C to 180°C. For the latter option, our grey-colored adaptor cable is needed for connection to our Hot Disk® instruments (or our sensor switch units) and is offered separately.

  • Option 1: Polymer cable cladding (-20°C to 50°C)
  • Option 2: Silicone cable cladding (-60°C to 180°C)

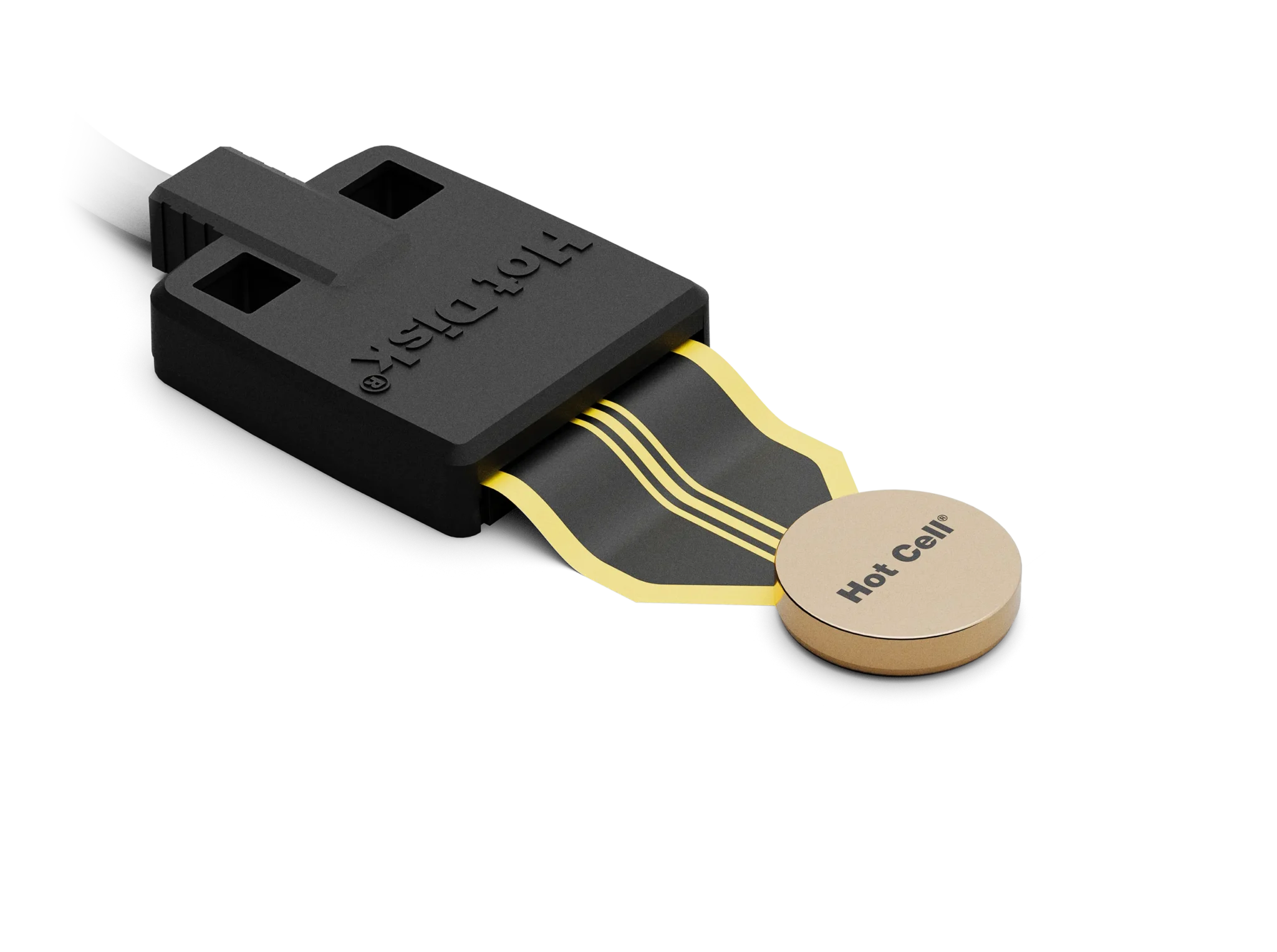

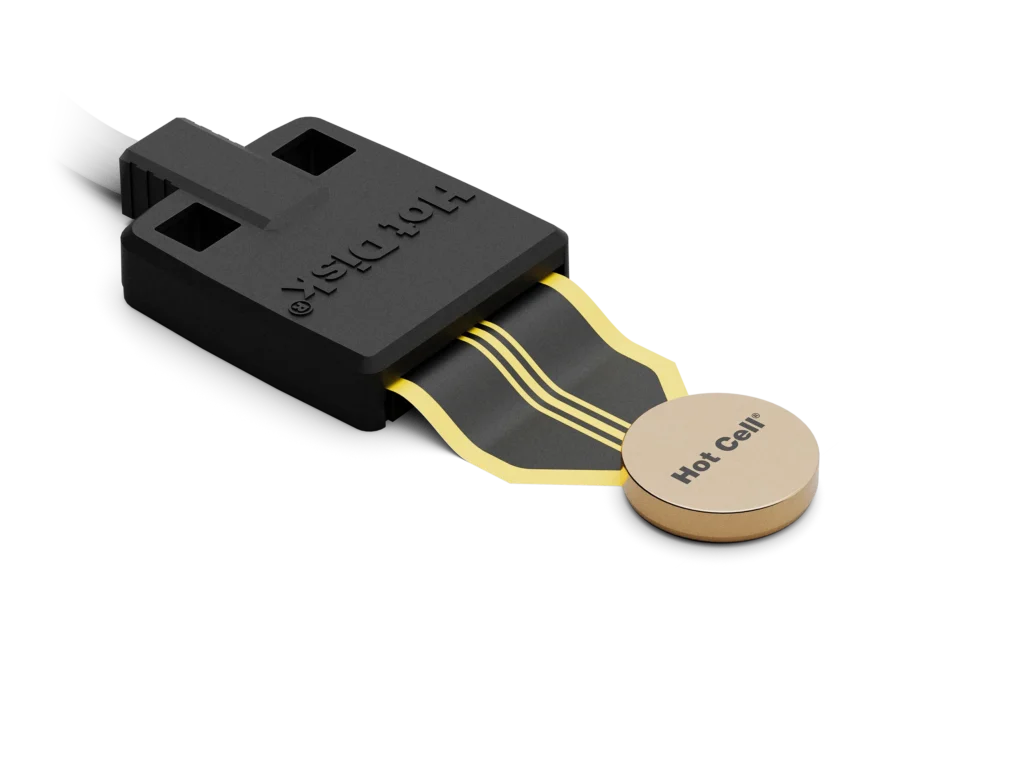

Hot Cell® Sensor – Model AU-D19-H4 (Gold cell, diameter 19 mm, height 4 mm)

Cell
Material Gold, 18K
Shape Cylinder, flat
Volume 1.3 cm3
Diameter 19 mm
Height 4.5 mm
Insulation High temperature foam
Maximum sample size
Volume 1.1 ml
Diameter 19 mm
Height 4.0 mm
Cable
Cladding Polymer (option 1) or silicone (option 2)
Housing material Plastic (option 1) or aluminum (option 2)
Length 2.0 m (option 1) or 1.0 m (option 2)
Connector 8-pin Lemo (male) (option 1) or 4-pin Lemo (male) (option 2)
Temperature range -20°C to 50°C (option 1) or -60°C to 180°C (option 2)
