Products / Sensors

Hot Cell® Sensors

For Bulks, Granules, Powders and Small Batteries

  • New

These three Hot Cell® sensors have a small to medium cell volume and are intended for testing bulks, granules, and powders. They are also ideal for testing small batteries, such as button cells and small-size pouch cells. The cells are made of aluminium and have the shape of a flat cylinder. The three cell sizes have a width and height of 20 mm and 5 mm, 40 mm and 9 mm, and 70 mm and 12 mm, respectively.

The Hot Cell® sensors come with high-temperature foam insulation and two cable options – a standard grey-colored polymer-clad cable for use between -20°C to 50°C, or a red-colored silicone-clad cable for use between -60°C to 180°C. For the latter option, our grey-colored adaptor cable is needed for connection to our Hot Disk® instruments (or our sensor switch units) and is offered separately.

  • Option 1: Polymer cable cladding (-20°C to 50°C)
  • Option 2: Silicone cable cladding (-60°C to 180°C)

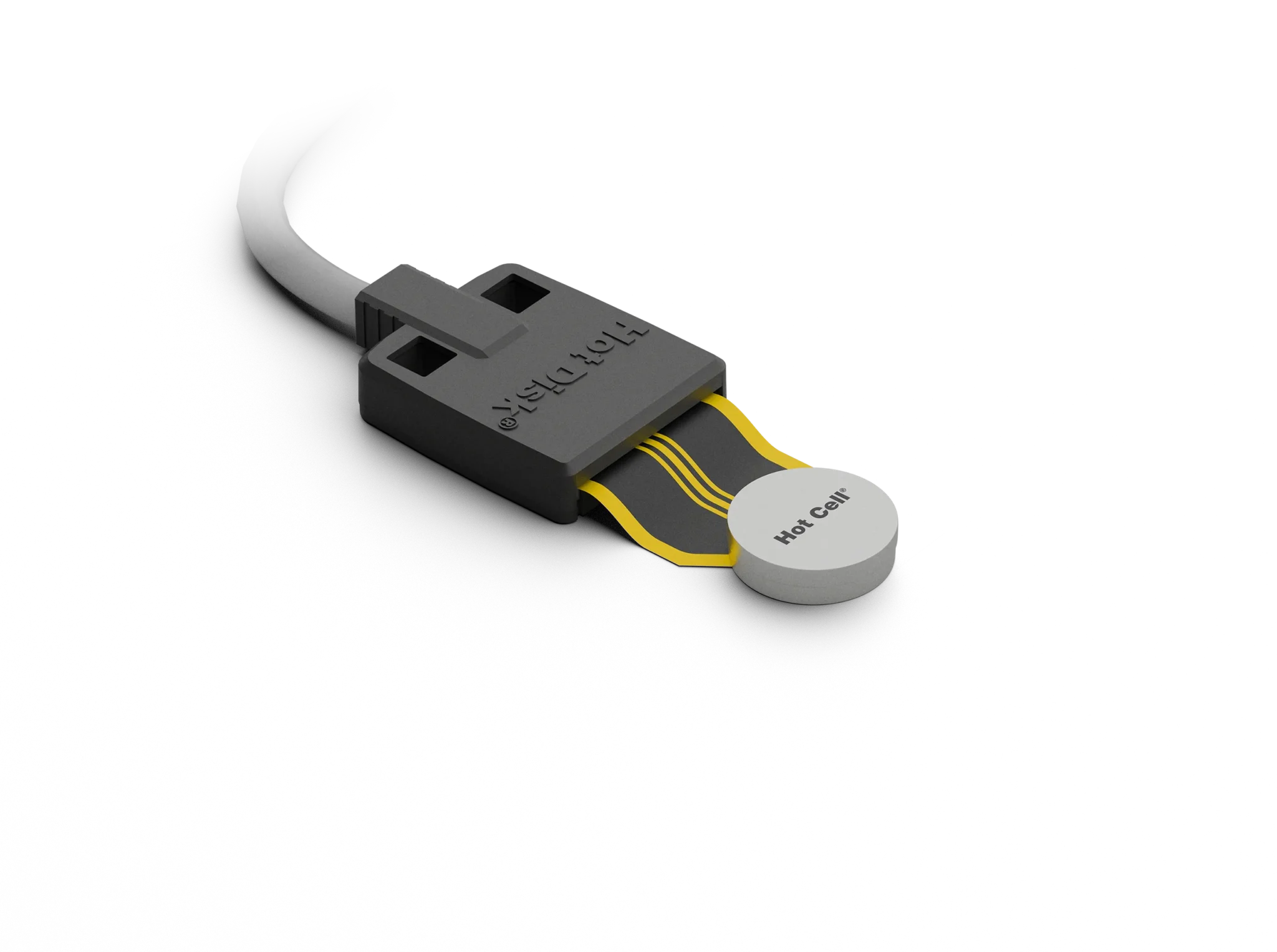

Hot Cell® Sensor – Model AL-D20-H5 (Aluminum cell, diameter 20 mm, height 5 mm)

Cell
Material Aluminum
Shape Cylinder, flat
Volume 1.6 cm3
Diameter 20 mm
Height 5 mm
Insulation High temperature foam
Maximum sample size
Volume 1.4 ml
Diameter 20 mm
Height 4.5 mm
Cable
Cladding Polymer (option 1) or silicone (option 2)
Housing material Plastic (option 1) or aluminum (option 2)
Length 2.0 m (option 1) or 1.0 m (option 2)
Connector 8-pin Lemo (male) (option 1) or 4-pin Lemo (male) (option 2)
Temperature range -20°C to 50°C (option 1) or -60°C to 180°C (option 2)

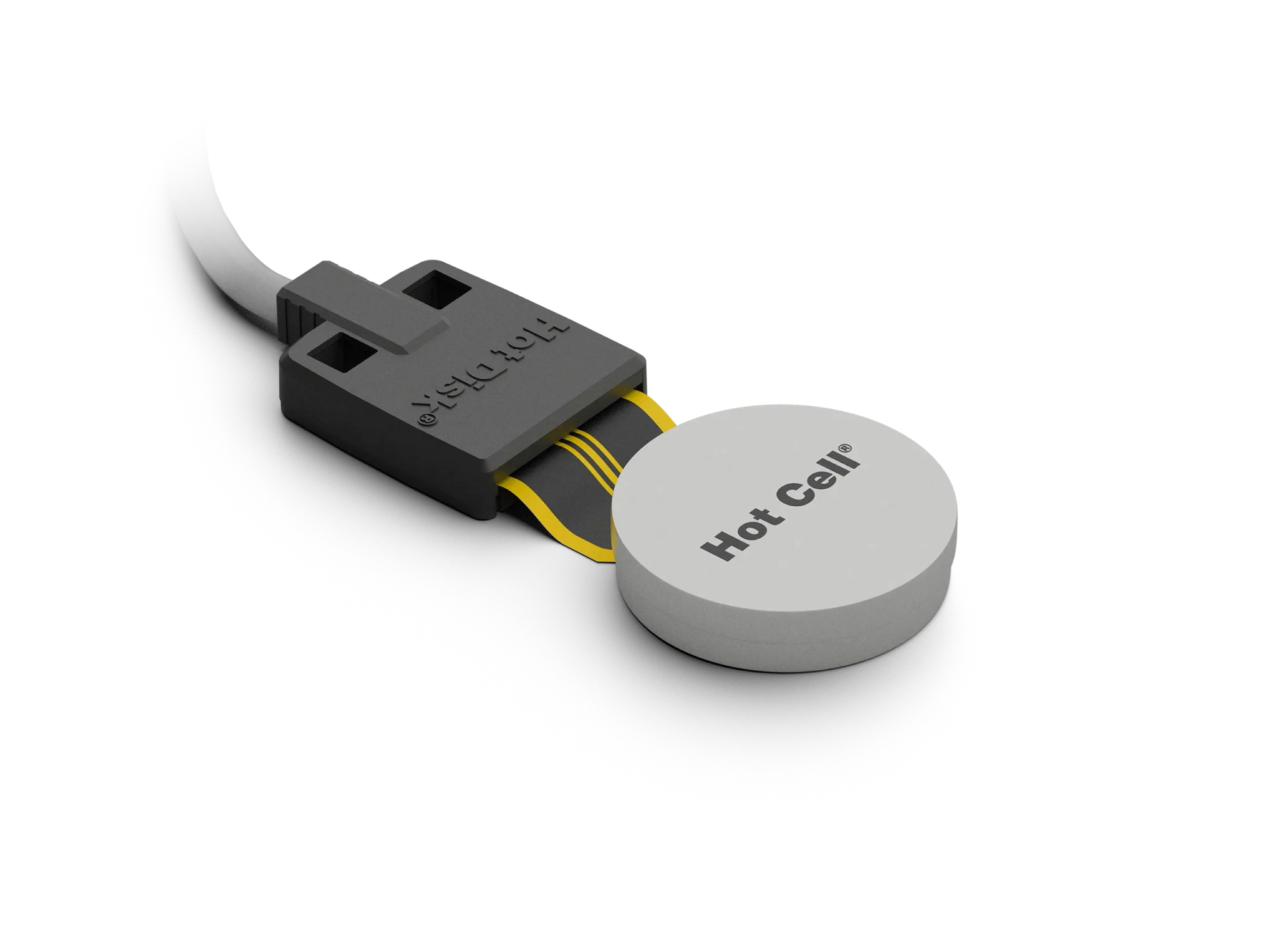

Hot Cell® Sensor – Model AL-D40-H9 (Aluminum cell, diameter 40 mm, height 9 mm)

Cell
Material Aluminum
Shape Cylinder, flat
Volume 11.3 cm3
Diameter 40 mm
Height 8.5 mm
Insulation High temperature foam
Maximum sample size
Volume 10.7 ml
Diameter 40 mm
Height 8.5 mm
Cable
Cladding Polymer (option 1) or silicone (option 2)
Housing material Plastic (option 1) or aluminum (option 2)
Length 2.0 m (option 1) or 1.0 m (option 2)
Connector 8-pin Lemo (male) (option 1) or 4-pin Lemo (male) (option 2)
Temperature range -20°C to 50°C (option 1) or -60°C to 180°C (option 2)

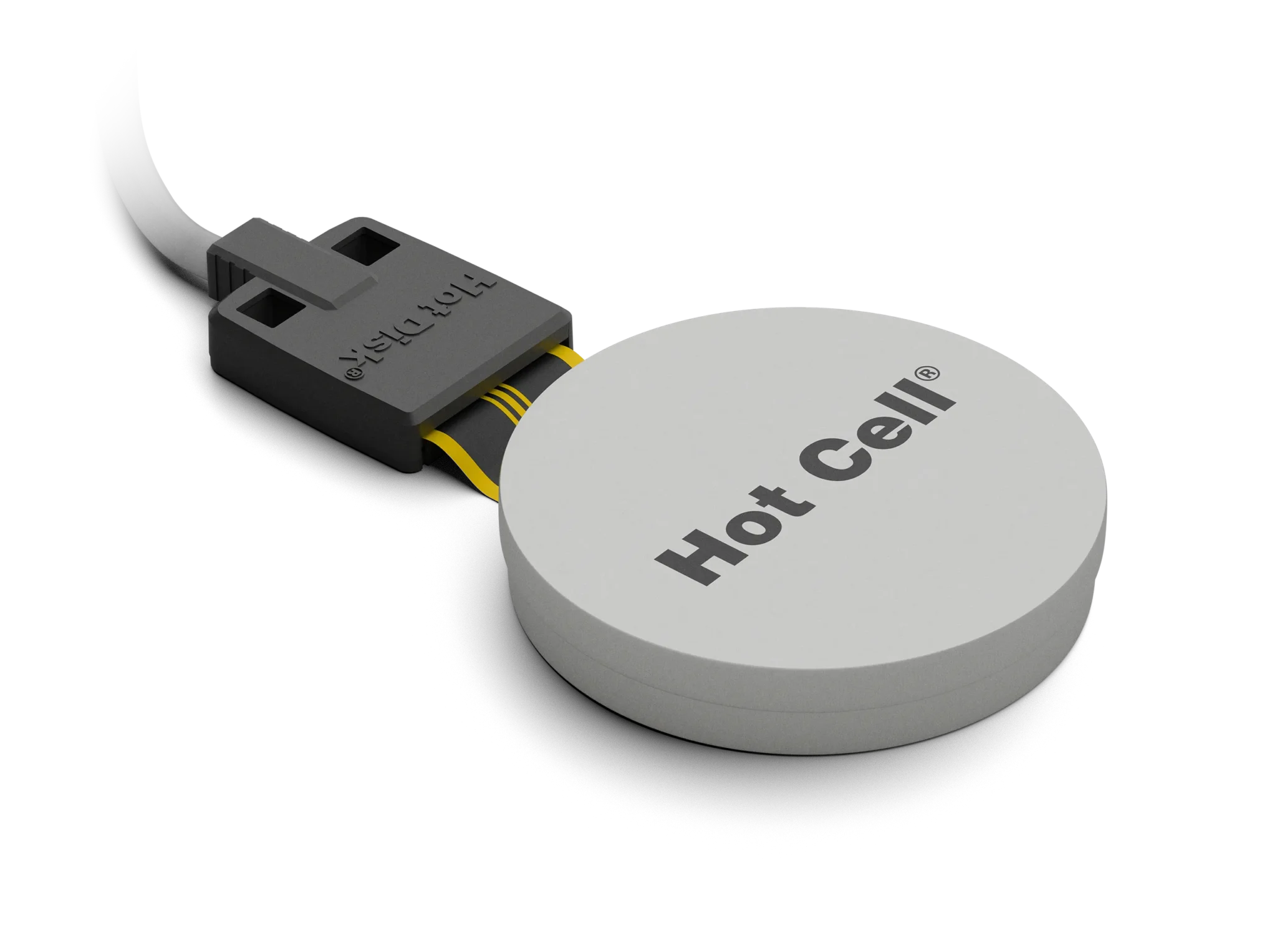

Hot Cell® Sensor – Model AL-D70-H12 (Aluminum cell, diameter 70 mm, height 12 mm)

Cell
Material Aluminum
Shape Cylinder, flat
Volume 46.2 cm3
Diameter 70 mm
Height 12 mm
Insulation High temperature foam
Maximum sample size
Volume 44.3 ml
Diameter 70 mm
Height 11.5 mm
Cable
Cladding Polymer (option 1) or silicone (option 2)
Housing material Plastic (option 1) or aluminum (option 2)
Length 2.0 m (option 1) or 1.0 m (option 2)
Connector 8-pin Lemo (male) (option 1) or 4-pin Lemo (male) (option 2)
Temperature range -20°C to 50°C (option 1) or -60°C to 180°C (option 2)
