Hot Cell® Sensors

For Cylindrical Batteries

  • New

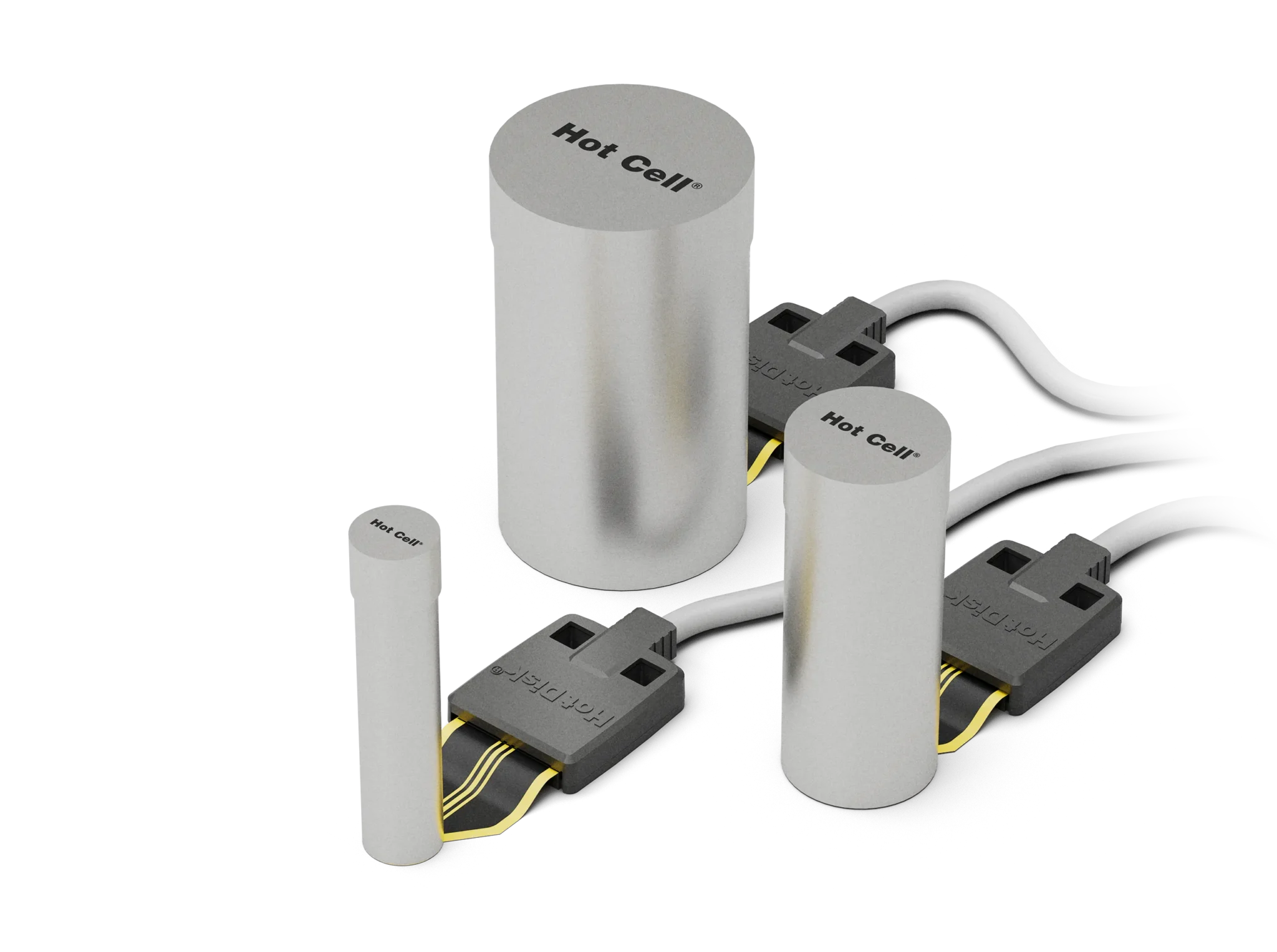

These three Hot Cell® sensors are primarily intended for testing cylindrical batteries. They have cell volumes that are matched to standardized cylindrical battery geometries. The cells are made of aluminium and have the shape of a tall cylinder. The three cell sizes have a width and height of 15 mm and 70 mm; 30 mm and 75 mm; and 50 mm and 85 mm, respectively. To improve the thermal contact of the cylindrical battery to the aluminium cell, we recommend the use of silicone oil.

The Hot Cell® sensors come with high-temperature foam insulation and two cable options – a standard grey-colored polymer-clad cable for use between -20°C to 50°C, or a red-colored silicone-clad cable for use between -60°C to 180°C. For the latter option, our grey-colored adaptor cable is needed for connection to our Hot Disk® instruments (or our sensor switch units) and is offered separately.

  • Option 1: Polymer cable cladding (-20°C to 50°C)
  • Option 2: Silicone cable cladding (-60°C to 180°C)

Hot Cell® Sensor – Model AL-D15-H70 (Aluminum cell, diameter 15 mm, height 70 mm)

Cell
Material Aluminum
Shape Cylinder, flat
Diameter 15 mm
Height 70 mm
Insulation High temperature foam
Maximum cylindrical battery size
Diameter 15 mm
Height 70 mm
Lithium Battery 07540, 08570, 10180, 10280, 10440, 13400, 14250, 14300, 14430, 14500, 14650, 15270
Cable
Cladding Polymer (option 1) or silicone (option 2)
Housing material Plastic (option 1) or aluminum (option 2)
Length 2.0 m (option 1) or 1.0 m (option 2)
Connector 8-pin Lemo (male) (option 1) or 4-pin Lemo (male) (option 2)
Temperature range -20°C to 50°C (option 1) or -60°C to 180°C (option 2)

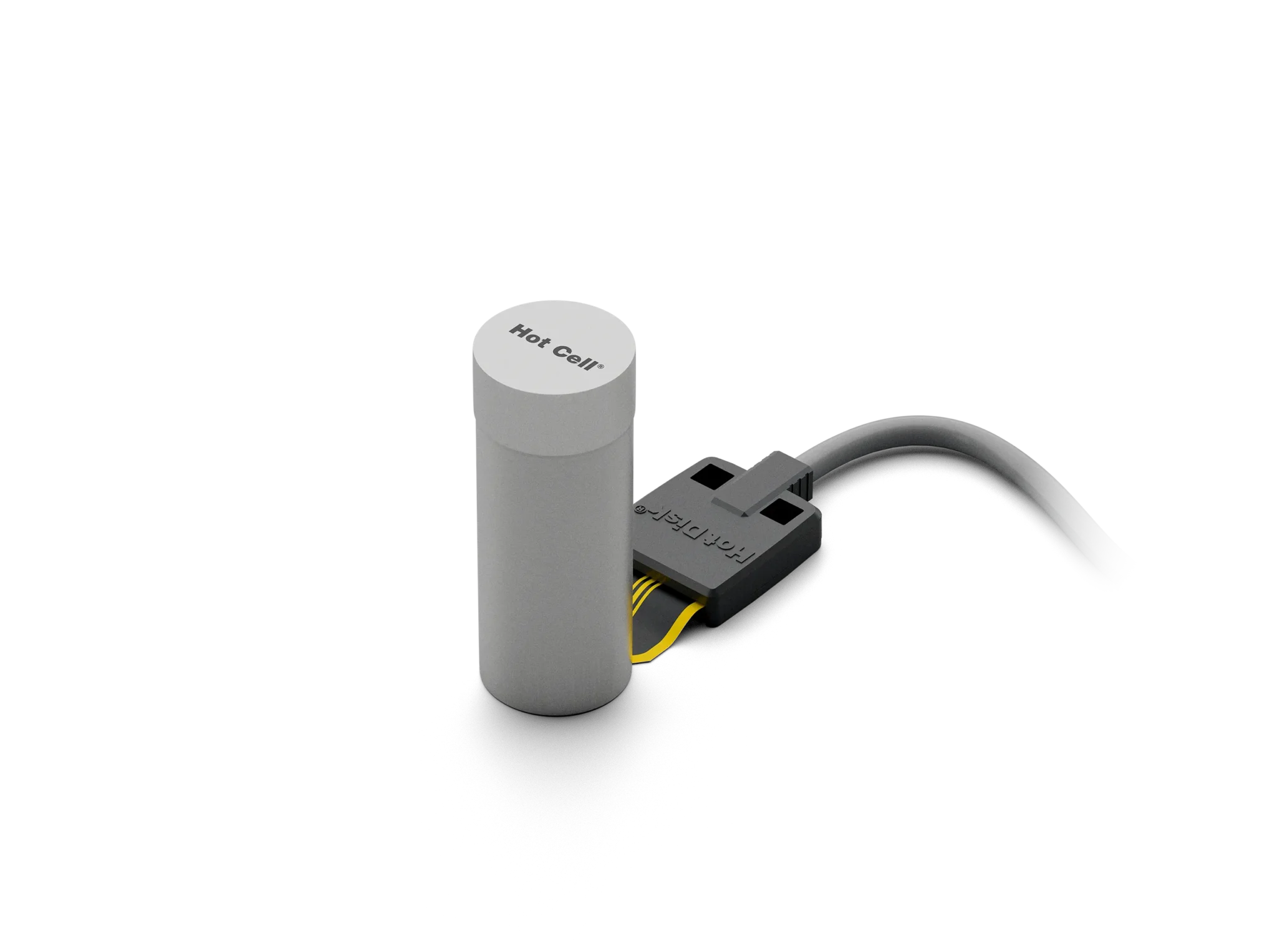

Hot Cell® Sensor – Model AL-D30-H75 (Aluminum cell, diameter 30 mm, height 75 mm)

Cell
Material Aluminum
Shape Cylinder, flat
Diameter 30 mm
Height 75 mm
Insulation High temperature foam
Maximum cylindrical battery size
Diameter 30 mm
Height 75 mm
Lithium Battery 16340, 16650, 17500, 17650, 17670, 18350, 18490, 18500, 18650, 20700, 21700, 25500, 26500, 26650, 26700
Cable
Cladding Polymer (option 1) or silicone (option 2)
Housing material Plastic (option 1) or aluminum (option 2)
Length 2.0 m (option 1) or 1.0 m (option 2)
Connector 8-pin Lemo (male) (option 1) or 4-pin Lemo (male) (option 2)
Temperature range -20°C to 50°C (option 1) or -60°C to 180°C (option 2)

Hot Cell® Sensor – Model AL-D50-H85 (Aluminum cell, diameter 50 mm, height 85 mm)

Cell
Material Aluminum
Shape Cylinder, flat
Diameter 50 mm
Height 85 mm
Insulation High temperature foam
Maximum cylindrical battery size
Diameter 50 mm
Height 85 mm
Lithium Battery 10850, 26800, 32600, 32650, 32700, 4680
Cable
Cladding Polymer (option 1) or silicone (option 2)
Housing material Plastic (option 1) or aluminum (option 2)
Length 2.0 m (option 1) or 1.0 m (option 2)
Connector 8-pin Lemo (male) (option 1) or 4-pin Lemo (male) (option 2)
Temperature range -20°C to 50°C (option 1) or -60°C to 180°C (option 2)
