Instruments, Sensors, Measurement Modules and More
All these factors combine to make Hot Disk® instruments the world’s most flexible, reliable, and widely appreciated systems for analysing Thermal Conductivity, Thermal Diffusivity, Thermal Effusivity, and Specific Heat Capacity, for material research and quality control (QC). They follow ISO 22007-2 and are CE marked.
The Cutting Edge Hot Disk® Instrument Portfolio
The precision and versatility of the equipment we provide is unmatched and offers a wide range of advanced features and possibilities.
Measurement Precision. Unmatched measurement precision, via the state-of-the-art micro-Kelvin temperature sensitivity.
Measurement Range. Unmatched thermal conductivity range, from 0.005 to 1800 W/mK.
Sample Types. Tackling all types of samples – bulks, slabs, sheets, foils, films, textiles, composites, laminates, stacks, granules, powders, pastes, gels, creams, foams, liquids, insulators, etc. – whether electrically conductive or insulating.
Sample Size. Tackling sample thicknesses spanning centimeter down to micrometer scale.
Anisotropy Testing. Measurement of direction-dependent Thermal Conductivity and Thermal Diffusivity in 2D and 3D anisotropic samples.
QC Testing. Unique quality control (QC) testing capabilities of materials and components, via:
- Rapid and non-destructive testing, ideal for time-sensitive production lines.
- Efficiently and swiftly localizing defects and structural changes in materials or components through depth profiling of the Thermal Conductivity.
Battery Testing. World-leading battery testing capabilities:
- Testing anisotropic Thermal Conductivity and Thermal Diffusivity of layered battery composites.
- Testing Specific Heat Capacity of button-, cylindrical-, prismatic-, and pouch cells, ranging from millimeter to decimeter scale in size.
Instruments & Auxiliaries
Instruments
A wide range of Hot Disk® instrument models is available for testing and measuring Thermal Conductivity, Thermal Diffusivity, Thermal Effusivity and Specific Heat Capacity following ISO 22007-2. While typically generous of measurement spectrum, our top-of-the-line instruments are unique in monitoring ultra-short transient temperature readings, thereby tackling sub-millimeter-thick samples and highly-thermal conducting materials, beyond 1800 W/m/K. A further unique feature of our instrumentation is that it requires no external calibration. Our clients can confidently continue its employ, without worrying over the inconvenience of being obliged to return their instruments for re-calibration at regular intervals. Each Hot Disk® instrument includes two LEMO connector ports: one for the relevant Hot Disk® sensor, and one for the optional PT100 ambient temperature sensor.1 Please consult our interactive links below, to help determine which Hot Disk® instrument is best suited to your intended applications and needs.
Hot Disk® Laboratory Instruments
Our laboratory instruments are intended first and foremost for R&D, but are also frequently applied for QC testing. They are based on modularity, in which our range of Measurement Modules can be added to offer an unmatched flexibility in tackling all kinds of sample types, shapes and sizes. This is of highest concern when developing new materials, components, devices etc.
- Updated
TPS 3500
The Hot Disk® TPS 3500 is the state-of-the-art instrument for testing the Thermal Conductivity, Thermal Diffusivity, Thermal Effusivity and Specific Heat Capacity of tiny, highly thermal conducting samples. The capabilities of the TPS 3500 go well beyond that of any other available instrument to date – Thermal Conductivity ranging from 0.005 to 1800 W/m/K, tackling 10-micrometer-thick slab samples, and accommodating temperatures from cryogenic to 1000°C. It has also the unique ability to analyse the anisotropic thermal transport properties of both uniaxial and biaxial materials, by use of specialized Hot Strip® sensors in the latter case. The TPS 3500 meets ISO 22007-2 and is CE marked.
Learn more >
TPS 2500 S
The popular Hot Disk® TPS 2500 S is the core instrument of our portfolio. This multi-purpose, highly performing R&D thermal conductivity meter is designed for precision analysis of thermal transport properties of materials of all types: solids, liquids, powders, and pastes. It is frequently used in automated production line QC testing. The TPS 2500 S handles sub-millimeter-thick bulk samples, has a Thermal Conductivity range of 0.005 to 1800 W/m/K, and accommodates temperatures from cryogenic to 1000°C. It can also analyse the anisotropic thermal transport properties of uniaxial materials. The TPS 2500 S is a capital research instrument, meets ISO 22007-2 and is CE marked.
Learn more >
TPS 2200
The Hot Disk® TPS 2200 is a general-purpose, affordable R&D instrument for accurate measuring of Thermal Conductivity, Thermal Diffusivity, Thermal Effusivity and Specific Heat Capacity, when performance and price are both in consideration. The TPS 2200 tackles a satisfying range of sample geometries, including down to millimeter-thick bulk samples. It can measure Thermal Conductivity from 0.01 to 500 W/m/K, and handles a temperature range from -100°C to 750°C. It can also analyse the anisotropic thermal transport properties of uniaxial materials. The TPS 2200 naturally meets ISO 22007-2 and is CE marked.
Learn more >
TPS 1500
The affordable Hot Disk® TPS 1500 is the ideal thermal conductivity meter for testing building materials, insulation materials or any other type of large bulk samples. The TPS 1500 Thermal Conductivity range comprises 0.01 to 400 W/m/K, and the instrument handles temperatures from -100°C to 750°C. Sample sizes down to a thickness of a few millimeters can be accommodated. It can also analyse the anisotropic thermal transport properties of uniaxial materials. The TPS 1500 meets ISO 22007-2 and is CE marked.
Learn more >
TPS 500 S
The Hot Disk® TPS 500 S rapidly and accurately measures the Thermal Conductivity, Thermal Diffusivity, Thermal Effusivity and Specific Heat Capacity of a wide range of materials and is therefore an excellent step-in thermal conductivity meter, and uniquely suitable for QC testing. The TPS 500 S adds powerful new features to the 500-series, in accommodating e.g. more measurement modules and sensor models. The TPS 500 S can handle bulk sample sizes down to a thickness of a few millimeters, has a Thermal Conductivity range of 0.03 to 200 W/m/K, and its temperature span is from -100°C to 300°C. It is partly based on ISO 22007-2 and is CE marked.
Learn more >
TPS 500
The Hot Disk TPS 500 swiftly and accurately measures the Thermal Conductivity, Thermal Diffusivity, Thermal Effusivity and Specific Heat Capacity of a wide range of materials. It is therefore a favorable step-in thermal conductivity meter, and highly suitable for QC testing. The TPS 500 can handle bulk sample sizes down to a thickness of a few millimeters. The TPS 500 Thermal Conductivity range is from 0.03 to 100 W/m/K, and its temperature range from -100°C to 200°C. It is partly based on ISO 22007-2 and is CE marked.
Learn more >
Hot Disk M1
The Hot Disk® M1 is a basic thermal conductivity meter which nevertheless offers high accuracy and measurement repeatability. With the M1, solids, powders and pastes in the Thermal Conductivity range of 0.03 to 40 W/m/K are readily tested. Sample sizes down to a thickness of one centimeter can be handled, and the temperature range is 10°C to 40°C. The M1 is partly based on ISO 22007-2 and is CE marked.
Learn more >Hot Disk® Quality Control Instruments
Our Quality Control (QC) Instruments are dedicated for QC testing, but can also be used for R&D. They allow for scaling their capability to meet the particular needs of a product line QC testing case, where the testing scenario is fixed over time. For scalability, a number of sensor packages are offered, each with dedicated sensor models and associated Measurement Modules.
- New
TPS 1000
The Hot Disk® TPS 1000 is a powerful instrument for QC testing, measuring Thermal Transport Properties at very high precision. The TPS 1000 is scalable, where in its most basic configuration it functions primarily as a price-attractive simple Thermal Conductivity meter for 1D (through-plane) testing. Yet the TPS 1000 can also be used as a dedicated Specific Heat Capacity meter. In an upgraded configuration, the instrument can also be used as an advanced Thermal Conductivity, Thermal Diffusivity, and Thermal Effusivity meter, with performance and capability close to our TPS 2200 laboratory instrument. In other words tackles millimeter-thick bulk samples, measures Thermal Conductivity from 0.01 to 500 W/m/K, handles a temperature range from -100°C to 750°C, and be used to analyse the anisotropic thermal transport properties of uniaxial materials. The TPS 1000 meets ISO 22007-2 and is CE marked.
Learn more >Measurement Modules
Hot Disk® instruments can be tailored to specific testing needs not only by the selection of sensors, but also by the wide range of measurement modules available. These modules allow for the testing of samples of special geometries, thermal conductivity ranges and material types. The Isotropic Module is the standard module for measuring bulk samples, and is included in all instruments.2 The add-on modules in turn extend the capabilities of your instrument, for example to tackle anisotropic-, slab-, or thin film samples. Based on long client experience, Hot Disk conveniently offers its clients clustered configurations along with many instrument models, via grouping several modules of related interest together, or by providing for the full available range. In effect, this means Hot Disk customers have the option of ordering several add-on modules at a quantity discount. Please contact your local Hot Disk sales representative for available cluster options.
Hot Disk® Measurement Modules
Isotropic (Standard)
Our foundational and powerful Isotropic Measurement Module allows the Hot Disk® Instrument user to measure the Thermal Conductivity, Thermal Diffusivity, Thermal Effusivity, and Specific Heat Capacity of any isotropic bulk sample, whether a solid, liquid, granule, powder, paste, gel, foam or insulator, with high accuracy and within seconds. Our Hot Disk® sensor is applied and clamped between two identical sample pieces. Sample thickness ranges from several centimeters down to sub-millimeter format.
Works with Hot Disk® Instruments:
Learn more >
- Updated
Anisotropic (Add‑on)
With our add-on Anisotropic Measurement Module, the Hot Disk® Instrument user can measure the direction-dependent Thermal Conductivity and Thermal Diffusivity of an anisotropic sample, whether a crystalline or polycrystalline material, laminate, fiber composite, adhesive, film stack, foil stack, insulator, etc., with high accuracy. Our Hot Disk® sensors are used for testing 2D-anisotropic (uniaxial) samples, while our Hot Strip® sensors are applied for testing 3D-anisotropic (biaxial) samples. The latter capability is exclusive to our premium TPS 3500 instrument.
Works with Hot Disk® Instruments:
- * Can handle samples with 3D anisotropy
Slab (Add‑on)
With our add-on Slab Measurement Module, the Hot Disk® Instrument user can accurately measure the in-plane Thermal Conductivity, Thermal Diffusivity, and Thermal Effusivity of a highly thermally conductive slab or sheet sample using our Hot Disk® or Hot Strip® sensors. The slab or sheet can be a metal plate, graphite sheet or laminate, semiconductor wafer, silicone film, metal foil, etc. Sample thickness ranges from several millimeters down to micrometers.
Works with Hot Disk® Instruments:
Learn more >
Thin Film (Add‑on)
With our add-on Thin Film Measurement Module, the Hot Disk® Instrument user can easily measure the through-plane Thermal Conductivity of a thermal insulating film or coating with a thickness in the micrometer range using our Hot Disk® sensors. The film can be plastic, paper, flexible glass, etc., while the coating can be a sprayed polymer, sputtered dielectric, spin-coated ceramic, etc.
Works with Hot Disk® Instruments:
Learn more >
Low-Density / Highly-Insulating (Add‑on)
With our add-on Low-Density / Highly-Insulating Measurement Module, the Hot Disk® Instrument user can confidently test the Thermal Conductivity of ultra-low thermally conducting materials such as aerogels and low-density foams using Hot Disk® sensors. Samples with Thermal Conductivity as low as 0.01 W/mK can be tested accurately.
Works with Hot Disk® Instruments:
Learn more >
One-Dimensional (Add‑on)
With our add-on One-Dimensional Measurement Module, the Hot Disk® Instrument user can measure the through-plane Thermal Conductivity, the through-plane Thermal Diffusivity, and the through-plane Thermal Effusivity of a rod-like sample with a width down to 1.5 millimeters and length down to 4 millimeters. This module comes in handy when sample amounts are limited, such as precious metal bars or ingots, graphite pellets, and spark-plasma-sintered materials.
Works with Hot Disk® Instruments:
Learn more >
Structural Probe (Add‑on)
With our add-on Structural Probe Measurement Module, the Hot Disk® Instrument user can measure the Thermal Conductivity as a function of depth into relevant samples, ranging from sub-millimeter to plural centimeter formats. This unique capability offers a powerful tool for QC testing, as homogeneity, defect detection, or analysis of inhomogeneous substances inside a material or component can thus be tested non-destructively. Examples include graphite-epoxy structures, rubber tires, and brake pads.
Works with Hot Disk® Instruments:
Learn more >
Single-Sided Testing (Add‑on)
With our add-on Single-Sided Testing Measurement Module, the Hot Disk® Instrument user can measure the Thermal Conductivity, Thermal Diffusivity, Thermal Effusivity, and Specific Heat Capacity with high precision without clamping the Hot Disk® or Hot Strip® sensor between two identical sample pieces. Instead, the sensor and a thermal insulating background support are placed on the surface of a single sample piece or component. This allows for rapid QC testing of high precision at a production line assembly.
Works with Hot Disk® Instruments:
Learn more >
Specific Heat Capacity (Add‑on)
With our add-on Specific Heat Capacity Measurement Module, the Hot Disk® Instrument user can directly measure the Specific Heat Capacity (Cp) of complex samples or components accurately. These include solids with non-flat surfaces, anisotropic composites or crystals, low-viscosity liquids, and varying-sized components. Topical examples are batteries (button, cylindrical, prismatic, and pouch cells). Precise measurements are conducted using our dedicated Hot Cell® sensors.
Works with Hot Disk® Instruments:
- * Only measurements without a Hot Cell® sensor.
Automation (Add‑on)
With our add-on Automation Measurement Module, the Hot Disk® Instrument user can fully remote-control measurements via the TCP/IP protocol. This module is an essential tool when using an instrument for automated QC testing in a production line assembly and solves situations when the user does not have direct access to the instrument.
Works with Hot Disk® Instruments:
Learn more >Sensors
We currently supply three different types of sensors to be used with our Hot Disk® instruments – configured in tandem with our range of Measurement Modules. All three sensor types make use of a TPS element – a patterned Nickel foil with electrically insulating cladding – that is used for simultaneous transient heating and precise temperature reading.
Our patented Hot Disk® sensor is our baseline sensor for measuring Thermal Conductivity and Thermal Diffusivity of isotropic samples. It is also used for testing 2D anisotropic samples, e.g. uniaxial crystals and layered composites with different properties in the in- and through-plane directions. Our patented Hot Strip® sensor is used as complement to our Hot Disk® sensor, primarily for testing 3D anisotropic samples, e.g. biaxial crystals and fiber composites with different properties along, across, and through the fiber orientation direction. Our Hot Cell® sensor is our newest type addition, developed in-house to measure the Specific Heat Capacity of materials or components (with focus on batteries) of arbitrary type, shape, and size.
Hot Disk® Sensors
Our patented Hot Disk® sensors are used for testing Thermal Conductivity and Thermal Diffusivity. They have a double spiral patterned Nickel foil, and come in three different claddings – Kapton, Teflon, and Mica. This encapsulation accommodates the Hot Disk sensor for a vast range of ambient temperatures, environments, atmospheres and surrounding media. The use of Nickel sensor spirals allows for very sensitive temperature readings, while the cladding provides electrical insulation, mechanical stability and durability.
Our sensors with Kapton insulation are designed to operate up to 300°C (or 400°C in oxygen-free environment), while our Mica-insulated ones function in the 300°C to 800°C range (or 1000°C in special cases). The Teflon-insulated sensors are in turn employed in acidic or corroding environments up to 250°C.
Hot Disk sensors come in radii ranging from 0.5 mm to 30 mm. Thus, small samples of high density as well as large porous samples of low density can be tackled with high accuracy. Our sensors are available either with or without cable appendages. Cables are offered in various claddings to suit the measurements in question: gray polymer for <50°C; red silicone for <180°C; or with white ceramic ring coils for demanding scenarios up to 1000°C. For cryogenic temperatures thin-diameter silicone-cladded cables are offered.
At temperatures above 500°C, our Mica-insulated sensors must be considered perishables, and are hence offered in bulk. Analogously, our Teflon-insulated sensors allow for measurements in corrosive environments/media, with lifespans correspondlingly limited. Finally, our Kapton-insulated sensors, handled with care and stored appropriately, typically offer years of reliable operation.
Hot Disk® Sensors
Kapton-insulated
Our Kapton-insulated sensors are the most versatile in the Hot Disk® sensor portfolio, employed at temperatures from -253°C (20 K) to 400°C. They are mechanically highly flexible, and frequently attain a lifetime of several years when employed with care. The Kapton-insulated Hot Disk® sensors are available in seventeen models of different radii to date, catering to a wide range of sample sizes and topical applications.
Learn more >
Hot Disk® Sensors
Teflon-insulated
Our Teflon-insulated Hot Disk® sensors are mechanically flexible, geared toward liquid- or high-viscosity immersion and temperatures up to 250°C. They are designed for use in extreme conditions, such as acidic or corrosive environments, or with sticky and reactive samples. The Teflon-insulated Hot Disk® sensors are today available in six smaller-radii models.
Learn more >
Hot Disk® Sensors
Mica-insulated
Our Mica-insulated Hot Disk® sensors are mechanically firm and designed for measurements at elevated temperatures, typically in the 300°C to 1000°C range. Coming in eight models of different radii to date, they are commonly more perishable at higher temperatures, while easily replaced and available in bulk.
Learn more >Hot Strip® Sensors
Our patented Hot Strip® sensors are used for testing Thermal Conductivity and Thermal Diffusivity, just like our Hot Disk® sensors. The types complement each other by further extending flexibility and adding new capabilities to our testing range. The design and basic function of the Hot Strip® sensor is identical to that of the Hot Disk® sensor, save that the Nickel foil is patterned in the form of vertical lines instead of shaping into a double spiral. Currently, the Hot Strip® sensor comes in Kapton cladding, and can operate up to 300°C (400°C in vacuum or oxygen-free environment). It comes in widths and lengths ranging from 6.4 to 16 mm and 19 to 59 mm, respectively. Similarly to the Hot Disk® sensors the Hot Strip® sensors are available either with or without cable appendages, whereby the same cable-cladding options are offered.
Hot Strip® Sensors
Kapton-insulated
While our Hot Disk® sensors can accommodate most measurement scenarios, our Hot Strip® sensors can importantly tackle odd-shaped and/or limited-sized samples, e.g. rectangular slabs and rods with rectangular or square cross-sections. Regarding anisotropic samples, Hot Strip® sensors can be used to analyse the 3D Thermal Conductivity and Thermal Diffusivity tensors of biaxial materials, whereas the Hot Disk® sensors are limited to analyse the 2D Thermal Conductivity and Thermal Diffusivity tensors of uniaxial materials.
Learn more >Hot Cell® Sensors
Our Hot Cell® sensors, invented in-house, are used for testing Specific Heat Capacity (Cp). They consist of a thin metal container with lid, where a TPS element is permanently attached to its base. It is important that the lid can be closed tight without being obstructed by the sample or component to be tested inside. The metal container is thermally insulated with a low-density foam insulation that is included in the sensors’ configuration. We offer a wide range of Hot Cell® sensors with different cell shapes and volumes to accommodate different types and sizes of materials and components. For components the focus is currently on common battery geometries. We also offer Hot Cell® sensors with customized cell shapes and volumes, to accommodate uncommon or new battery geometries. With our Hot Cell® sensors, the Cp of batteries can be tested at ambient temperatures between -60°C and 180°C.

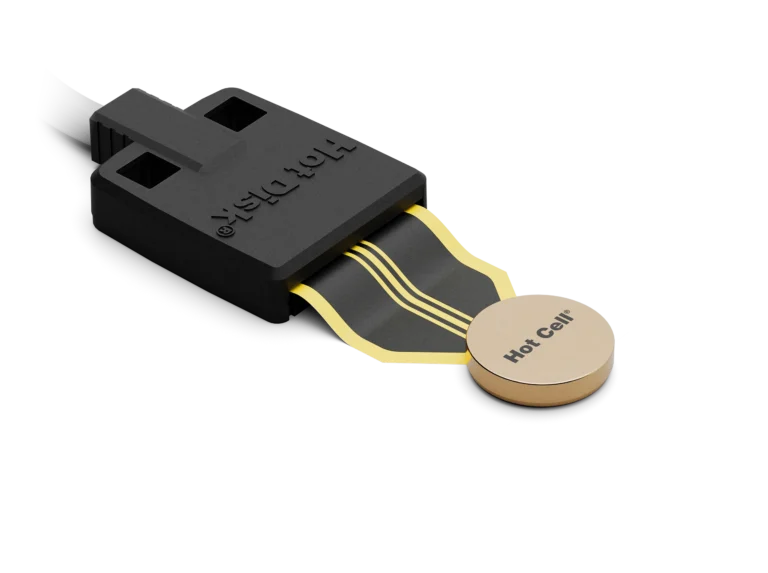

Hot Cell® Sensors
for Liquids, Gels, and Pastes
This Hot Cell® sensor has a small cell volume and is intended for testing liquids, gels, and pastes. The cell is made of 18K gold and has the shape of a flat cylinder, with a width of 19 mm and height of 4.5 mm. The gold enables easy cleaning and handling of acidic or corrosive specimens.
Learn more >
- New

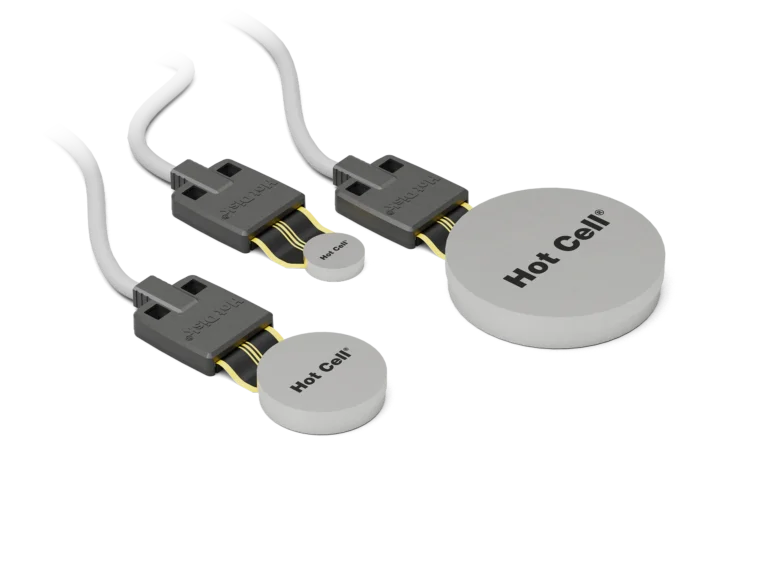

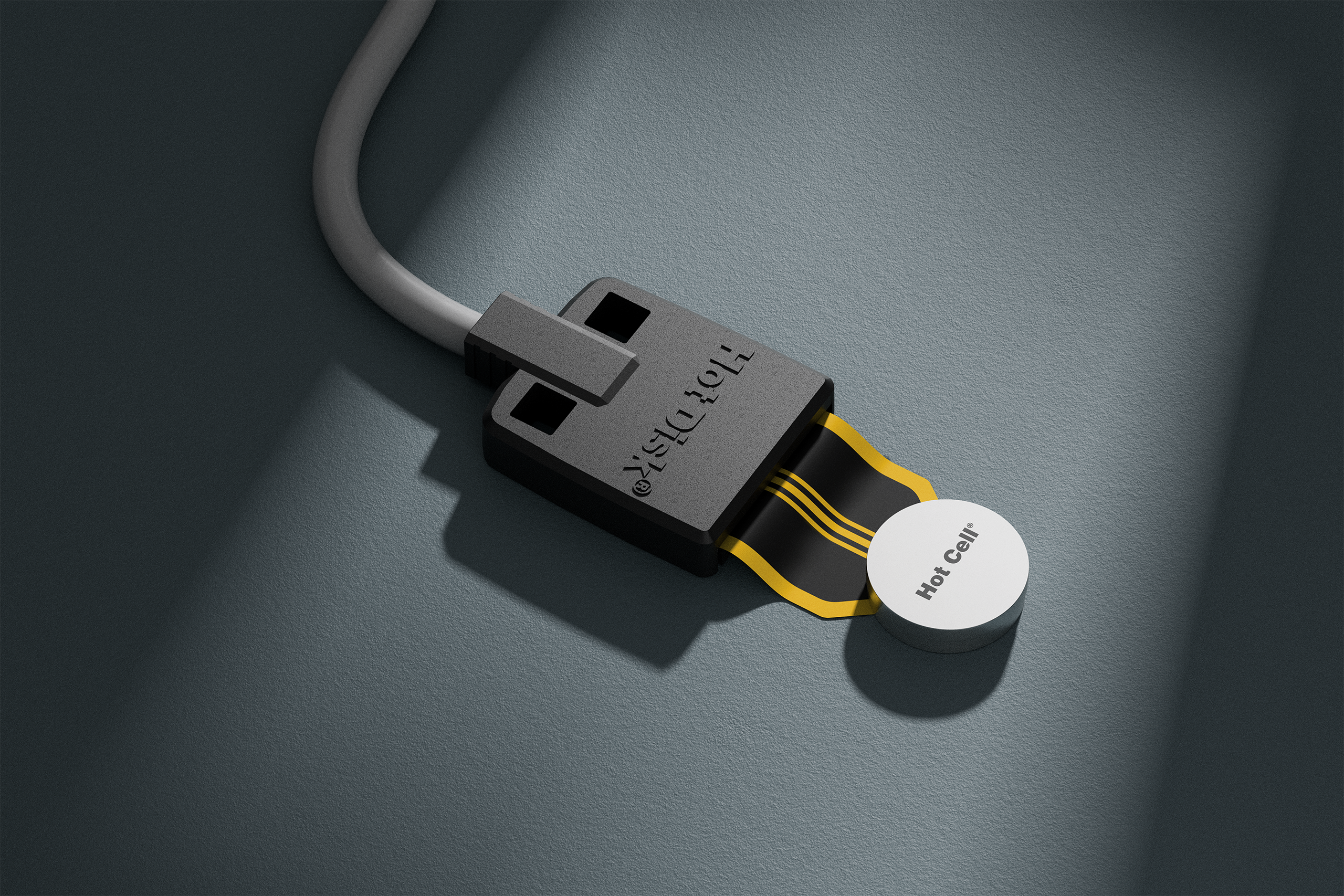

Hot Cell® Sensors
for Bulks, Granules, Powders and Small Batteries
These three Hot Cell® sensors have a small to medium cell volume and are intended for testing bulks, granules, and powders. They are also ideal for testing small batteries, such as button cells and small-size pouch cells. The cells are made of aluminium and have the shape of a flat cylinder. The three cell sizes have a width and height of 20 mm and 5 mm, 40 mm and 9 mm, and 70 mm and 12 mm, respectively.
Learn more >
- New
Hot Cell® Sensors
for Cylindrical Batteries
These three Hot Cell® sensors are primarily intended for testing cylindrical batteries. They have cell volumes that are matched to standardized cylindrical battery geometries. The cells are made of aluminium and have the shape of a tall cylinder. The three cell sizes have a width and height of 15 mm and 70 mm; 30 mm and 75 mm; and 50 mm and 85 mm, respectively. To improve the thermal contact of the cylindrical battery to the aluminium cell, we recommend the use of silicone oil.
Learn more >
- New
Hot Cell® Sensors
for Flat Batteries
These three Hot Cell® sensors are primarily intended for testing flat batteries, with focus on medium-size pouch batteries. The cells are made of aluminium and have the shape of a flat square box with rounded edges. The three cell sizes have a width and height of 80 mm and 12 mm; 160 mm and 16 mm; and 240 mm and 20 mm, respectively. Due to the rounded edges of the cells, the maximum pouch battery size will depend on if the pouch battery is square-shaped or rectangular-shaped.
Learn more >
- New
- Customized

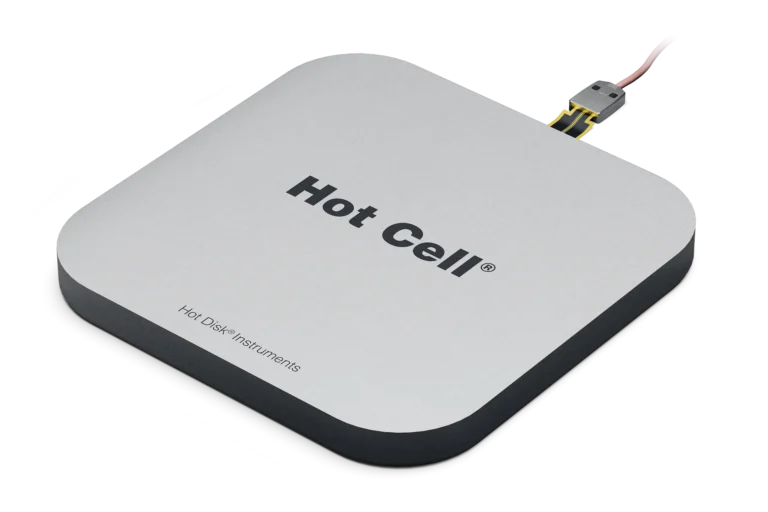

Hot Cell® Sensors
for Large Batteries
These Hot Cell® sensors are primarily intended for testing flat batteries, with focus on large-size pouch batteries and prismatic batteries. The cells are made of aluminium and have the shape of a flat square or rectangular box with rounded edges. The cell sizes are customized with a maximum width, length, and height of respectively 400 mm, 400 mm, and 100 mm. Hot Disk can arrange cells with even greater width and length upon special request. Due to the rounded edges of the cells, the maximum pouch battery size will depend on if the pouch battery is square-shaped or rectangular-shaped.
Learn more >Auxiliaries
To accommodate the testing needs of its clients, Hot Disk offers a spectrum of auxiliaries, either developed in-house or via trusted third parties. In this product category we offer solutions for temperature control via cryostats, bath circulators, convection-, muffle- and tubular furnaces. In addition, we arrange sensor switch units for scenarios where multiple-point and uninterrupted measurements are required from a single Hot Disk® instrument working with multiple Hot Disk®, Hot Strip®, or Hot Cell® sensors. We also offer a range of sample holders and sensor fixtures for all manner of sample geometries, types, and ambient temperatures. This as well as a wealth of practical items, such as sensor extension cables, PT100 ambient temperature sensors, and sample pressure control solutions. Hot Disk also offers a selection of verification samples, including ones of stainless steel, crystal quartz, and PMMA.
Temperature Control Units (TCUs)
We supply several third-party TCUs that together cover just about the complete sample temperature range of Hot Disk® instruments, which ranges from -253 °C (20 K) to 1000 °C. These TCUs have customized feedthrough for the dedicated Hot Disk® sensor cabling, and our accessories of Hot Disk® sensor interfaces and sample holders with inserts have been tailored to suit. They all have a temperature stability better than ±0.5°C, which is needed to perform measurements with high accuracy and precision using our instruments. The TCUs are automatically controlled via the Hot Disk® Desktop App to work in tandem with relevant Hot Disk® instruments.
- New
Continuous-Flow Cryostat
This floor-standing cryostat uses a continuous flow of liquid nitrogen from a storage dewar for cooling, and a resistive wire element for heating. The system consists of four separated parts: a cylindrically shaped vacuum chamber, with a liquid nitrogen vessel on top, both integrated into a floor-stand; a temperature control unit; a turbomolecular pump; and a self-pressurized dewar.
Learn more >
- New
Low-to-High Temperature Chamber
This floor-standing TCU uses a two-stage refrigeration system with R404A and R23 refrigerants for cooling, and a fan with a heating element around it for heating. It comes with a box-shaped temperature chamber with a volume of 50 liters.
Learn more >
Bath Circulator
This floor-standing bath circulator uses a refrigeration system with EU-approved, Propene (A45) coolant medium for cooling, and an electrical heating element for heating. The bath circulator has a corrosion-resistant stainless steel reservoir of 12 liters for the bath volume. The box-shaped working area of this temperature vessel is 6 liters.
Learn more >
Convection Oven
This benchtop convection oven uses a fan with a heating element around it for heating. The oven comes with a box-shaped temperature chamber with an optional volume of 30 liters or 60 liters.
Learn more >
Muffle Furnace
This benchtop ceramic muffle furnace uses a resistive wire-wound element for heating. The furnace comes in a box-shaped temperature chamber with a volume of either 4 liters or 6 liters.
Learn more >
Non-Split Tube Furnace
This smaller benchtop horizontal tube furnace of non-split-type uses multiple zone metal coil elements for heating. The furnace has a removable tube-shaped and vacuum-sealed temperature chamber of inner diameter 50 mm.
Learn more >

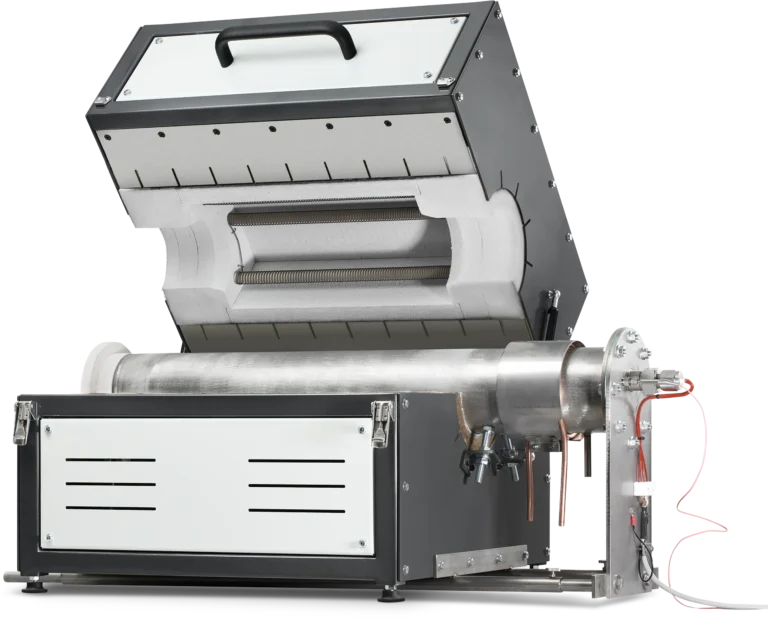

Split Tube Furnace
This larger benchtop horizontal tube furnace of split-type uses multiple zone metal coil elements for heating. The furnace has a removable tube-shaped and vacuum-sealed temperature chamber of inner diameter 100 mm. The split-type design reduces tube cooling time.
Learn more >
PT100 Temperature Sensor
The PT100 temperature sensor is used optionally for registering the ambient temperature close to the sample and prior to a measurement with the Hot Disk® instrument. It is especially useful when using a TCU as the sample temperature might differ from that registered by the integrated TCU thermometer. Note that this PT100 temperature sensor is not used for automatic temperature control of our TCU units.
Learn more >
PT100 Temperature Sensor
The PT100 temperature sensor is used optionally for registering the ambient temperature close to the sample and prior a measurement with the Hot Disk® instrument. It is especially useful when using a TCU as the sample temperature might differ from that registered by the integrated TCU thermometer. Note that this PT100 temperature sensor is not used for automatic temperature control of our TCU units.
Learn more >Sensor Switch Units
The switch units are primarily used for enabling high-throughput QC-testing. We currently offer two switch units, with eight and four sensor ports for Hot Disk®, Hot Strip®, or Hot Cell® sensors respectively. Each of these sensor ports is paired with a PT100 temperature sensor port, enabling ambient temperature monitoring for each individual port.
The sensor switch units are automatically controlled by the Hot Disk® Desktop App to work in tandem with relevant Hot Disk® instruments.
- New
Hot Disk Switch-8
This benchtop eight-port sensor switch unit is ideal for large scale rapid QC testing in production lines with Hot Disk® instruments. It also allows for smooth multiple-point QC testing or R&D measurements over large sample/component areas. The switch unit comes with eight sensor ports for Hot Disk®, Hot Strip® or Hot Cell® sensors. All eight sensor ports are paired with individual PT100 temperature sensor ports.
Learn more >
- New
Hot Disk Switch-4
Tailored for smaller-scale QC testing scenarios, this benchtop four-port sensor switch unit is ideal for rapid QC testing in production lines with Hot Disk® instruments. It also allows for smooth multiple-point QC testing or R&D measurements over large sample/component areas. The switch unit comes with four sensor ports for Hot Disk®, Hot Strip® or Hot Cell® sensors. All four sensor ports are paired with individual PT100 temperature sensor ports.
Learn more >Accessories
A variety of Hot Disk® or Hot Strip® sensor cables, sensor interfaces, and sample holders with accessories are available for accommodating different sample sizes, sample types (bulks, slabs, powders, pastes, liquids etc.), sample pressures, sample temperatures, and our TCU’s respective temperature-chamber volumes. A limited range of Hot Disk® verification samples is also offered.
- Updated
Sensor Cable – Room Temperature
This grey-colored polymer-clad sensor cable is intended to operate in room temperature with our Kapton- or Teflon-insulated Hot Disk®, Hot Strip®, or Hot Cell® sensors. It comes with an 8-pin Lemo connector in one end for connection to our Hot Disk® instruments (or our sensor switch units), and with four bare wires at the other end for permanent connection to the sensor.
Learn more >
- Updated
Sensor Cable – Low to Medium Temperatures
This red-colored silicone-clad sensor cable is intended for measurements at low to medium temperatures, down to -60°C and up to up to 180°C, with our Kapton- or Teflon-insulated Hot Disk®, Hot Strip®, or Hot Cell® sensors. The cable comes with a 4-pin Lemo connector in one end and with four bare wires in the other end for permanent connection to the sensor.
Learn more >
- New
Sensor Cable – Cryogenic Temperatures
This red-and-black colored silicone-clad thin-diameter sensor cable is intended for measurements at cryogenic temperatures, down to 20 K, using a cryostat and our Kapton- or Teflon-insulated Hot Disk® or Hot Strip® sensors.
Learn more >
Sensor Cable Extension
This grey-colored polymer-clad sensor cable extension is for accommodating measurement scenarios requiring longer distances between the testing point and the Hot Disk® instrument. It comes with an 8-pin Lemo connector in both ends for a smooth extension of our room temperature sensor cable or adaptor cable.
Learn more >
Sensor Cable Adaptor
This grey-colored polymer-clad sensor cable adaptor is intended for our low- to medium-temperature sensor cables, converting their 4-pin Lemo connector into the 8-pin Lemo connector needed for connection to our instruments (and switch units).
Learn more >
- Updated
Sensor Interface – High Temperatures
This sensor interface is intended for temporarily connecting bare Kapton- or Teflon-insulated Hot Disk® or Hot Strip® sensors to sensor wires, and to accommodate measurements at high temperatures, up to 300°C.
Learn more >
- Updated
Sensor Interface – High Temperatures
This sensor interface is intended for temporarily connecting bare Mica-insulated Hot Disk® sensors to sensor wires, and to accommodate measurements at very high temperatures, up to 800°C.
Learn more >
- Updated
Sample Holder for Solids
This convenient benchtop sample holder is primarily intended for bulk sample testing at room temperature. It can, however, be modified to accommodate ambient temperatures up to 600°C. This allows for the usage in environmental chambers or larger furnaces.
Learn more >
- Updated
Sample Holder for Solids – Protective Hood
The sample holder for solids can be complemented with a protective hood. We strongly recommend the use of this hood to ensure that the full potential of a Hot Disk® instrument in terms of measurement accuracy and precision is utilized.
Learn more >
Sample Holder for Slabs, Wafers, Sheets, Textiles and Films
This sample holder is to be used when testing highly thermal conductive slab or sheet samples (with our Slab Measurement Module) that are relatively stiff, such as metal slabs, graphite sheets or laminates, and semiconductor wafers. At ambient temperatures below 400°C, this sample holder is typically applied with our Kapton-insulated Hot Disk® sensor models 5501 and 8563. At higher temperatures, it is typically used with our Mica-insulated Hot Disk® sensor model 5082.
Learn more >

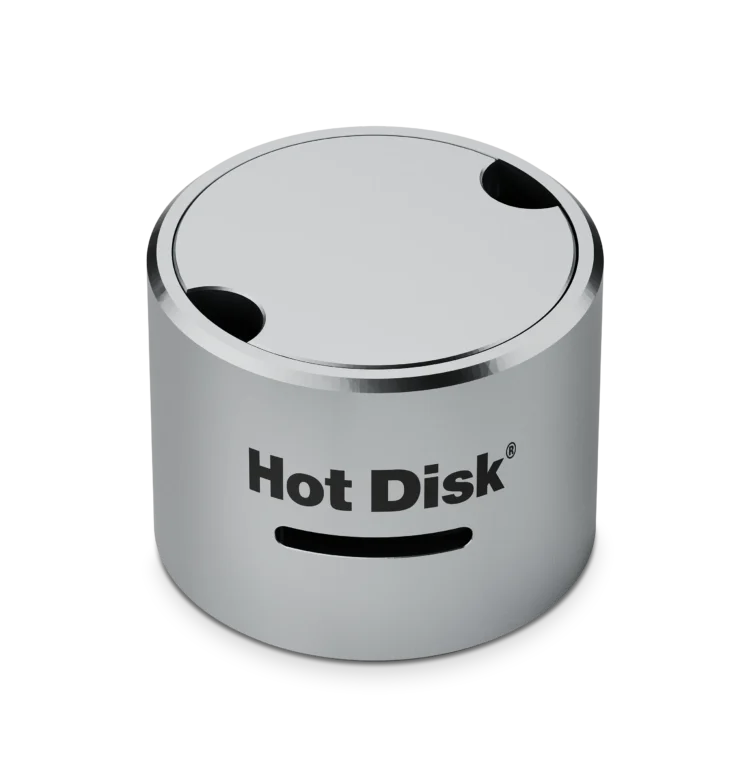

Sample Holder for Fine Powders, Pastes, Gels, Foams and Creams
This sample holder is intended for testing fine powders, pastes, gels, foams, and creams. It is mainly geared toward operation with our Kapton-insulated Hot Disk® sensor models 5465 and 5501 for ambient temperatures below 400°C, but it can also be used with our corresponding Teflon-insulated (for reactive samples) Hot Disk® sensors for ambient temperatures below 250°C. Likewise, it can be used with our Mica-insulated Hot Disk® sensor models 5465 and 5082 for ambient temperatures above 400°C.
Learn more >
Sample Holder for Coarse Powders, Grains, Beads, Granules and Pellets
This sample holder is intended for testing granular materials such as coarse powders, grains, granules, beads, and small pellets. It is mainly intended to operate with our Kapton-insulated Hot Disk® sensor model 4922, which has a double-spiral diameter of 29.2 mm. The grain/particle size of the granular sample must be significantly smaller (>10 times), than the double-spiral diameter (i.e. <3 mm for Hot Disk® sensor model 4922).
Learn more >
- New
Sample Holder for Foods, Pastes, Gels, Foams and Creams
This sample holder is primarily intended for testing samples to be frozen, such as foods. It can, however, equally well be used for the testing of high viscosity liquids, pastes, gels, foams, and creams. For frozen samples, we recommend the use of our Kapton-insulated Hot Disk® sensor model 8563; this has a double-spiral diameter of 19.8 mm. For high-viscosity liquids, pastes, gels, foams, and creams, we advise Kapton-insulated or Teflon-insulated (for reactive samples) Hot Disk® sensors with somewhat smaller double-spiral diameters.
Learn more >
Sample Holder for Liquids
This sample holder is intended for testing liquids, including ones with very low viscosity (such as Toluene). Testing liquids is somewhat challenging, as the heating from the sensor can introduce natural convection in the relevant liquid, especially regarding low-viscosity liquids, which disturbs the measurement results. To minimize this disturbance the sample volume should be small, and hence the sensors will be of modest size. We therefore recommend the use of our Kapton-insulated Hot Disk® sensor models 5465 and 7577, having double-spiral diameters of 6.4 mm and 4.0 mm, respectively, for testing liquids. For reactive samples, our Teflon-insulated Hot Disk sensor models 5465 and 7577 (with some customization) can also be used.
Learn more >
Weights for Sample Compression
These weights are used for pressuring soft sample materials during testing. They are intended primarily for testing thin film samples (with the Thin Film Measurement Module), where they work to reduce the thermal contact resistance between the Hot Disk® sensor and the two thin film sample pieces. The weights can also be used to study the properties of soft bulk materials as a function of pressure. The weights are then stacked to vary the pressure.
Learn more >
Manual Test Stand for Sample Compression
This bench-top, manually operated, force-measurement test stand is used for pressuring soft sample materials during testing. It furnishes both precise pressure and displacement monitoring. The manual test stand can conveniently be used to study the properties of soft bulk materials as a function of pressure and/or deformation.
Learn more >
Verification Sample
This is a verification sample of optional material: stainless steel (AISI 316/316L), fused quartz (amorphous silica, SiO2), or PMMA (polymethyl methacrylate). Two identical sample pieces are supplied, each having a flat cylindrical shape of diameter 60 mm, and thickness of 20 mm. The two sample pieces come in our smaller-sized signature wooden box with aluminum lid, together with a leaflet and a USB flash drive.
Learn more >
Verification Samples
This kit contains three different verification samples: stainless steel (AISI 316/316L), fused quartz (amorphous silica, SiO2), and PMMA (polymethyl methacrylate). Two identical sample pieces of each material are supplied, each having a flat cylindrical shape of diameter 60 mm, and thickness 20 mm. The six sample pieces come in our larger-sized signature wooden box with aluminum lid, together with a leaflet and a USB flash drive.
Learn more >
